Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Name: Manual Rolling Press Machine For Lithium Battery Electrode Calendering
Brand: MRBEST
Price: 1 USD

Wholesale Manual Rolling Press Machine For Lithium Battery Electrode Calendering from china suppliers

Brand Name : MRBEST

Model Number : MR-SG100L

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 500 sets per month

Delivery Time : 7-20 working days

Packaging Details : Standard Export Wooden Packing

Product Name : Manual Roller Press Machine

Roller : Dia 96 X W100mm, Other Width Available

Roller Hardness : >HRC62

Pressing Thickness : 0~2mm Adjustable

Rolling Press Accuracy : ≤±0.005

Rolling Press Width : 100mm Optional 150mm, 200mm, 250mm, 300mm

Product Dimensions : 350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")

Weight : 45kg (100 lbs)

Contact Now

Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Precision 4" (100mm) Width Manual Rolling Press Machine For Lithium Battery Electrode Calendering

Model: MR-SG100L

MR-SG100L Lab Roll Press Machineis a Manual Rolling Press Machine. It has dual rollers of 96 mm dia. x 100mm width and dual grade micrometer. This lab roll press machine is an ideal rolling press for adjusting thickness and increasing active material density of the electrode in Li-Ion batteries research after coating and drying.
This Lab roll press machine is mainly used in the laboratory lithium battery materials, small amount of precious metals such as gold and silver materials, copper, aluminum and other non-ferrous metal materials manually suppressed

Specifications

Model

4" Width(100mm) Manual Rolling Press Machine

MR-SG100L

Structure

1. Heavy duty steel frame, gears and handle

2. Φ96mm Dia. x 100mm width Rollers made from hardened tool steel (HRC > 60)

with Cr electroplated coating

3. Dual micrometer for accurate thickness adjustment in the range 0 - 2mm Maximum

Roller

Dimensions: 96mm(Dia.) x 100mm(W)

Material: Made from hardened tool steel (HRC > 60)

with Cr electroplated coating. With finish > 0.8

Rolling Press

Accuracy

≤±0.005

Rolling Press

Thickness

0-2mm adjusted with Dial gauge

Rolling Press

Width

100mm, Optional 150mm, 200mm, 250mm, 300mm, 350mm, 400mm

Product

Dimensions

350 mm(L) x 240mm(W) x 350mm(H) (14" x 9.5" x 14")

Weight

45kg (100 lbs)

Application

Notes

This roller is specially designed for battery R&D in terms of its advantages as affordable,

compact and precise.

1 Must use ace tone to clean and dry rollers' surfaces after each use to avoid rusting

2 Coated Rust-proof oil if machine were to be unused for a long period of time

3 The minimum thickness of the rolled sheet should depend on the physical property of

the materials. Here are some results from our test:

Electrode	Size	Original thickness	Finished Thickness
LiFePO4 double sides	50mm W * 260mm L	0.205mm	0.09mm
LiMn2O4 double sides	50mm W * 260mm L	0.205mm	0.09mm
Copper foil +Graphite (single side)	75mm W * 240mm L	0.09mm	0.04mm

Sample testing is available upon customer's request

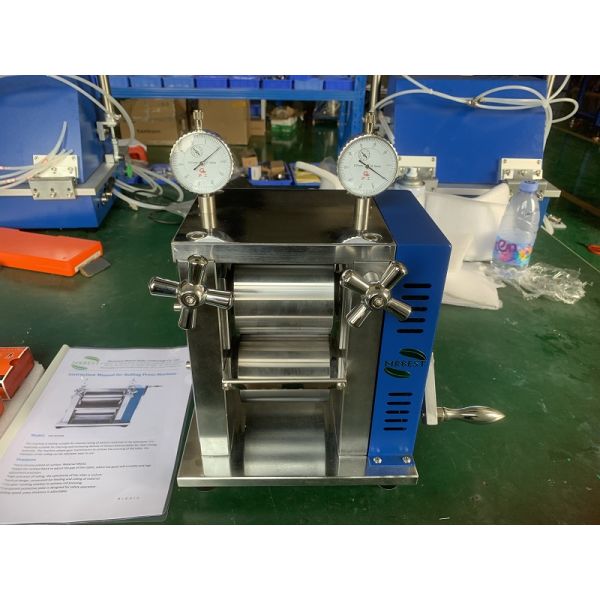

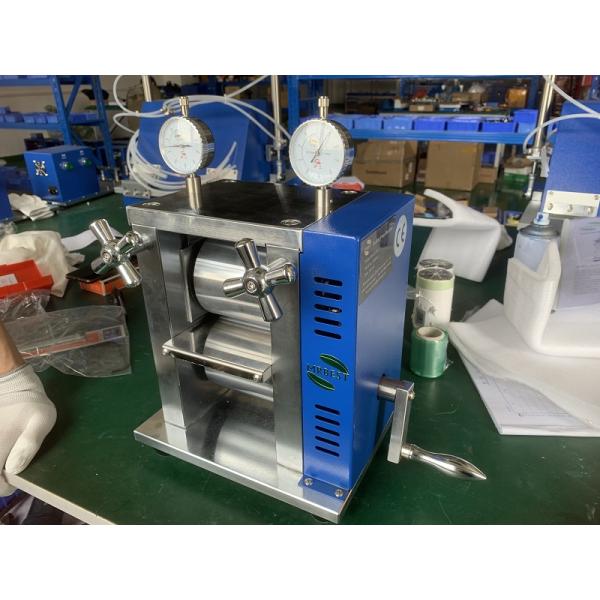

Picture for Reference

Manual Rolling Press Machine For Lithium Battery Electrode Calendering
